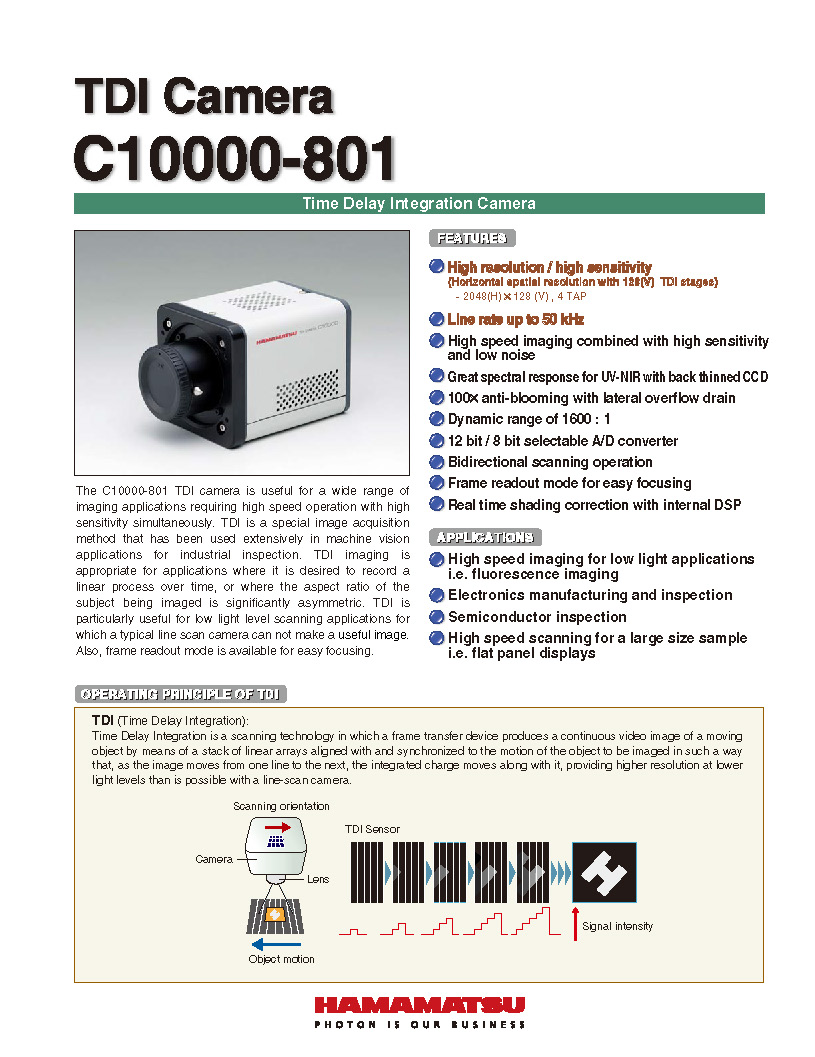

濱松 TDI Camera C10000-801
| 型號 | C10000-801 | 品牌 | 濱松 |
| 類別 | 其他 | 顏色 | 其他 |
| 適用波長范圍 | 其他 | 分辨率 | 其他 |
| 傳輸接口 | 其他 | 幀率/行頻 | 其他 |
| 應(yīng)用 | 其他 |
High resolution / high sensitivity
(Horizontal spatial resolution with 128(V) TDI stages)
Line rate up to 50 kHz
High speed imaging combined with high sensitivity
and low noise
Great spectral response for UV-NIR with back thinned CCD
100× anti-blooming with lateral overflow drain
Dynamic range of 1600 : 1
12 bit / 8 bit selectable A/D converter
Bidirectional scanning operation
Frame readout mode for easy focusing
Real time shading correction with internal DSP
(Horizontal spatial resolution with 128(V) TDI stages)
Line rate up to 50 kHz
High speed imaging combined with high sensitivity
and low noise
Great spectral response for UV-NIR with back thinned CCD
100× anti-blooming with lateral overflow drain
Dynamic range of 1600 : 1
12 bit / 8 bit selectable A/D converter
Bidirectional scanning operation
Frame readout mode for easy focusing
Real time shading correction with internal DSP
